商品の詳細:
お支払配送条件:
|
| 製品: | KPC-8A KEMING ロボットアームマシン | 色: | ホワイト,イエロー,ブルー,またはカスタマイズ |
|---|---|---|---|
| 管の識別子: | ダイア 51/57/64mm | メンテナンス: | オンライン 技術サポート |
| ハイライト: | remote control concrete spraying robot,wet mix shotcrete machine equipment,shotcrete sprayer matched with machine |
||

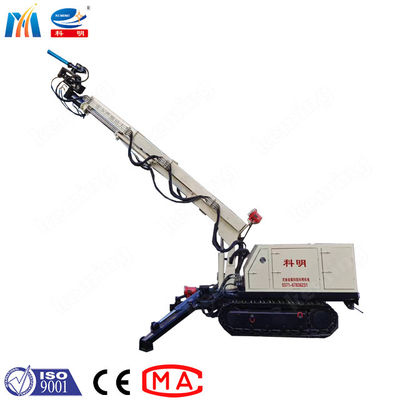

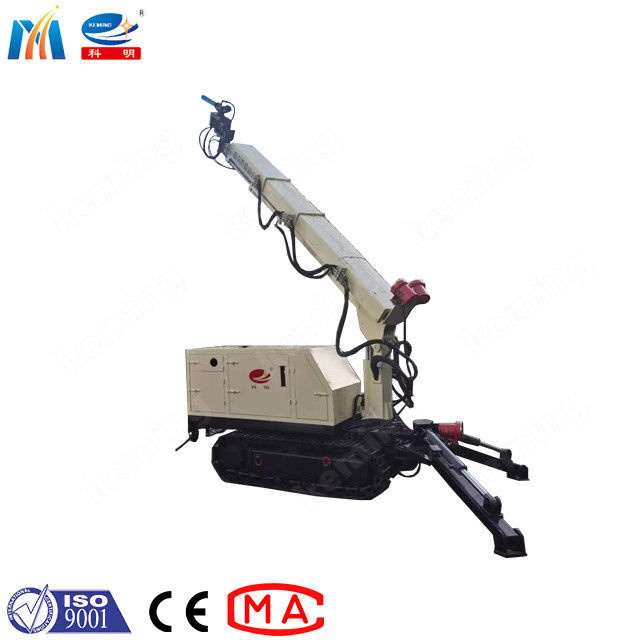

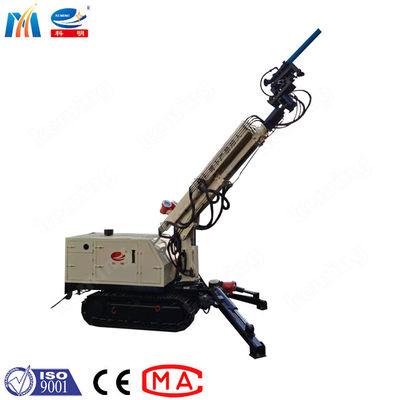

1.KPC-8A KEMING Robotic Arm Machine is suitable for dry, wet or wet and dry mixing.
2.KPC-8A KEMING Robotic Arm Machine can be used in underground coal mine environment
3.KPC-8A KEMING Robotic Arm Machine adopts explosion-proof electrical design
The nozzle mechanism consists of a 360° vertical oscillating cylinder, a 240° horizontal oscillating cylinder, a nozzle brushing arc device, a nozzle base, and the nozzle.
The 360° and 240° oscillating cylinders are arranged vertically and crosswise. Their movement allows for precise adjustment of the nozzle's position and angle within a narrow range.
A nozzle brushing device, driven by a hydraulic motor, is located at the front end, allowing the nozzle to sweep at an 8° cone angle around its axis, making it suitable for automated spraying of large surfaces.
|
Parameter |
KPC-6A |
KPC-8A |
|
|
Max. operation length |
7000 |
8400 |
|
|
Outrigger expansion width |
2300 |
2500 |
|
|
Support shotcrete capacity m3/h |
0-10 |
0-25 |
|
|
Boom |
Max. spraying H |
6.2m |
8.2m |
| Max. spraying W | 7m | 11m | |
|
Hose id |
51/57/64mm |
||
|
Arm frame telescopic dis. |
2.35m |
2.7m |
|
|
Boom expansion max. L |
3.5m |
6m |
|
|
Chassis |
Max. walk gradient |
20% |
25% |
|
Walking speed |
0.6km/h |
0.5km/h |
|
|
Ground dis. |
150mm |
390mm |
|
|
Power |
Hydraulic system output |
7.5kw |
11kw |
|
Voltage |
380-1140V |
||
1.KPC-8A KEMING Robotic Arm Machine is suitable for dry, wet or wet and dry mixing.
2.KPC-8A KEMING Robotic Arm Machine can be used in underground coal mine environment
3.KPC-8A KEMING Robotic Arm Machine adopts explosion-proof electrical design
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
